Winair - watercooled air compressor
Product Details:
X
Product Description
WINAIR HEAVY DUTY COMPRESSOR
| WINAIR Model | Motor HP | No of Cyl. | Max. Pressure Bar. | FAD @ Max. Pressure CFM | COMP. RPM |
| AES 750 L | 30 | 1 | 8.78 | 110 | 750 |
| AES 750 NL | 30 | 1 | 8.78 | 105 | 750 |
| AES 850 L | 40 | 1 | 7.03 | 148 | 675 |
| AES 850 NL | 40 | 1 | 7.03 | 141 | 675 |
| AES 870 L | 50 | 1 | 9.5 | 179 | 650 |
| AES 870 NL | 50 | 1 | 9.5 | 170 | 650 |
| AES 955L | 40 | 1 | 4.22 | 201 | 675 |
| AES 955 NL | 40 | 1 | 4.22 | 191 | 675 |
| AES 970 L | 60 | 1 | 7.7 | 240 | 650 |
| AES 970 NL | 60 | 1 | 7.7 | 228 | 650 |
| AES 957 L | 60 | 1 | 7 | 268 | 650 |
| AES 957NL | 60 | 1 | 7 | 225 | 650 |
| AES 1170 L | 75 | 1 | 7 | 335 | 650 |
| AES 1170 NL | 75 | 1 | 7 | 319 | 650 |

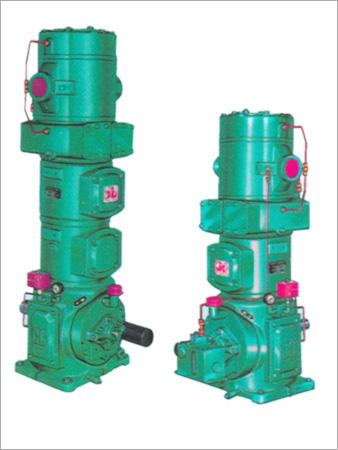

WINAIR Water Cooled Air Compressor are Vertical, double acting Single Cylinder requires less space minimum wear and tear.
Feature - Benefit:
Valve Parts : Imported Heat Treated stainless steel with reversible seat plate avoid rematching of the valve seat.
Crank Shaft: Well Balanced, Made from ductile iron, shock proof construction to resist uneven load.
Connecting Rod: Light Weight, I section ductile iron, Spilt consturction for easy assembly and disassembly.
Cross Head Assembly: Alluminium alloy, full floating pin type design with special alluminium alloy bush bearing.
Packing Case Assembly: fitting with fully floating, self adjusting packing rings & springs for minium wear.
Cooling: Water jacketing ensures uniform cooling.
Lubrication:
(1) Positive pressurised oil lubriucation though gear pump driven by the crank shaft to lubricator & crankpin bearing and cross head pin through connecting rod to form a full floating bearings, eliminates metal to metal contact, resulting longer bearing life.
(2) Cylinder lubrication is provided with crank shaft driven sight- feed lubricator.
(3) Low oil pressure switch provides shut down of machine to ensure positive lubrication.
